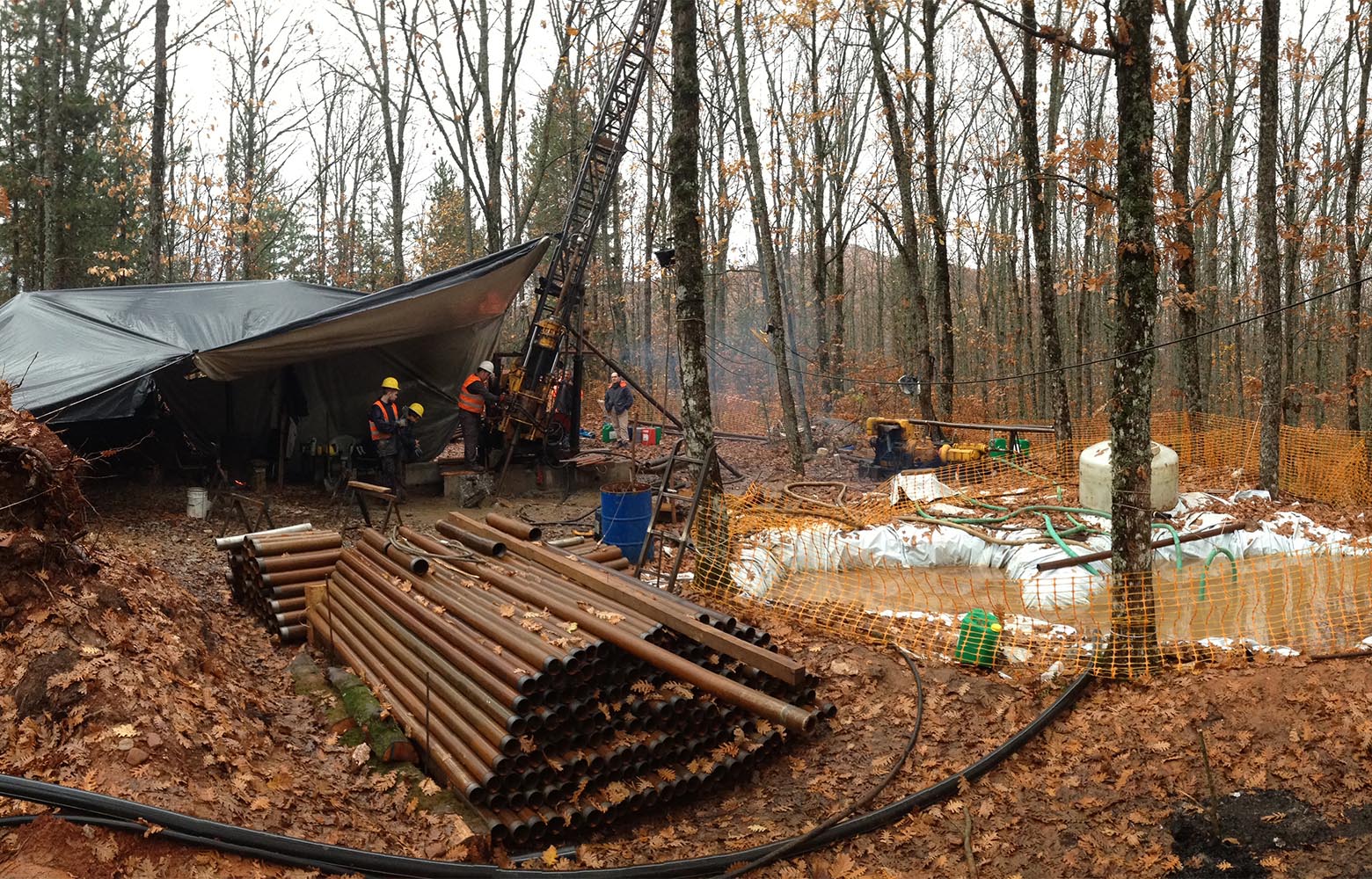

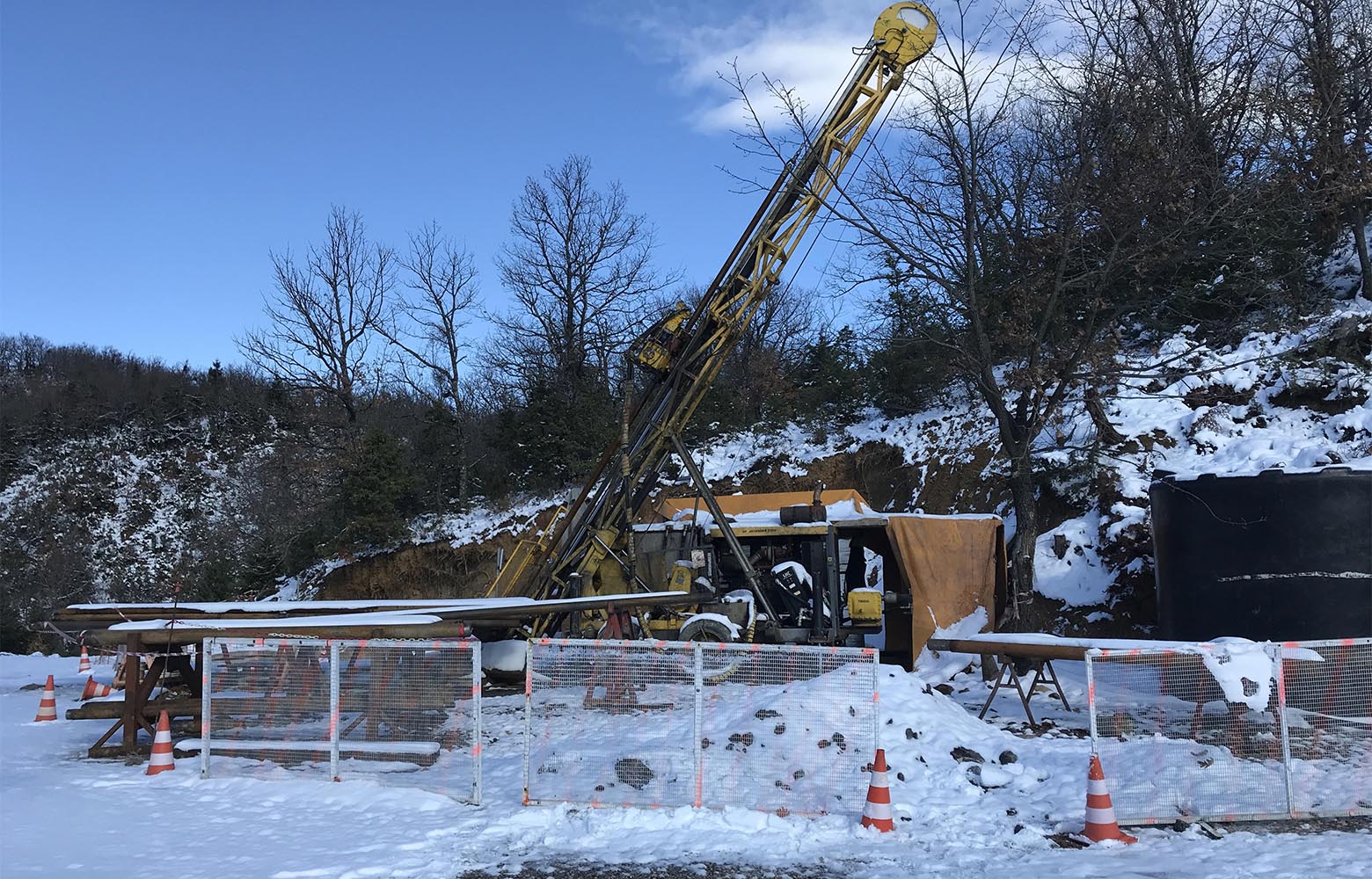

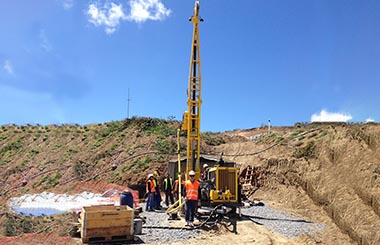

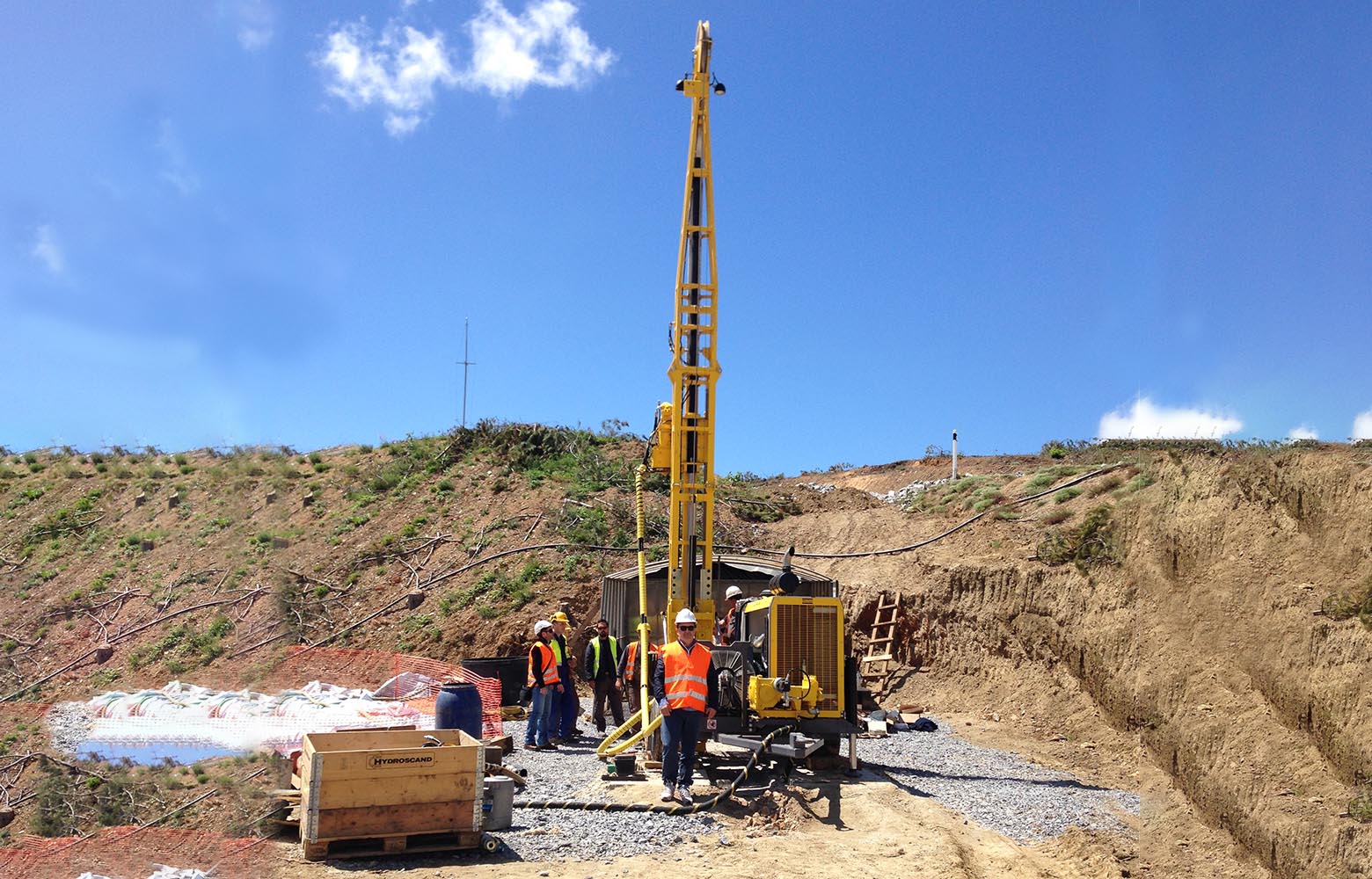

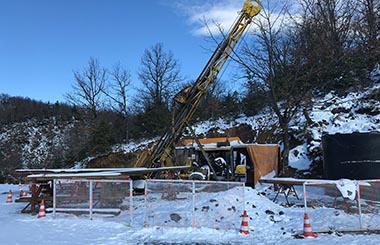

Atlas Copco Christensen CS14 Rig Details

Call Us: +30 210 8213311

Atlas Copco Christensen CS14 Specs

  • Cummins QSB 6.7lt Τier 3 / 153kW (208hp)
  • RPM : 1900
  • Diesel turbocharged
  • Cooling : water
  • Rod holding force : 130kN
  • Chuck holding capacity : 178kN
  • Mast pull force : 138kN
  • Mast thrust force : 59.6kN
  • Mud pump : Trido 140H (140lt/min, 64bar)
  • Max Torque (Rotation Unit) : 5100 Nm
  • Max Speed (Rotation Unit) : 1300 rpm
  • Drilling Capacity : 1200m (ΝQ)
  • Wireline hoist : 2000m
  • Max drum pull : 13kN
  • Drilling angle : 45o-90o

Rig Description

The CS14 represent the most flexible rig size in the Christensen range of surface core drilling rigs. Medium-sized, the Christensen 14 range is ideal for a variety of drilling applications – suitable for most depths or types of terrain. All models have a drill capacity of 1200 meters (NQ), and are equipped with a powerful feed system, main winch and Stage 3A/Tier3 ready engines which reduce emission levels.

  • Wireline
  • Trailer
  • PQ, HQ, NQ
