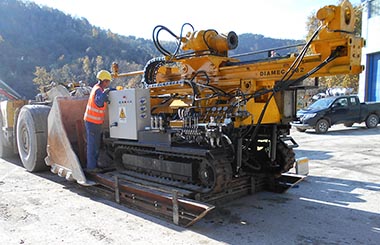

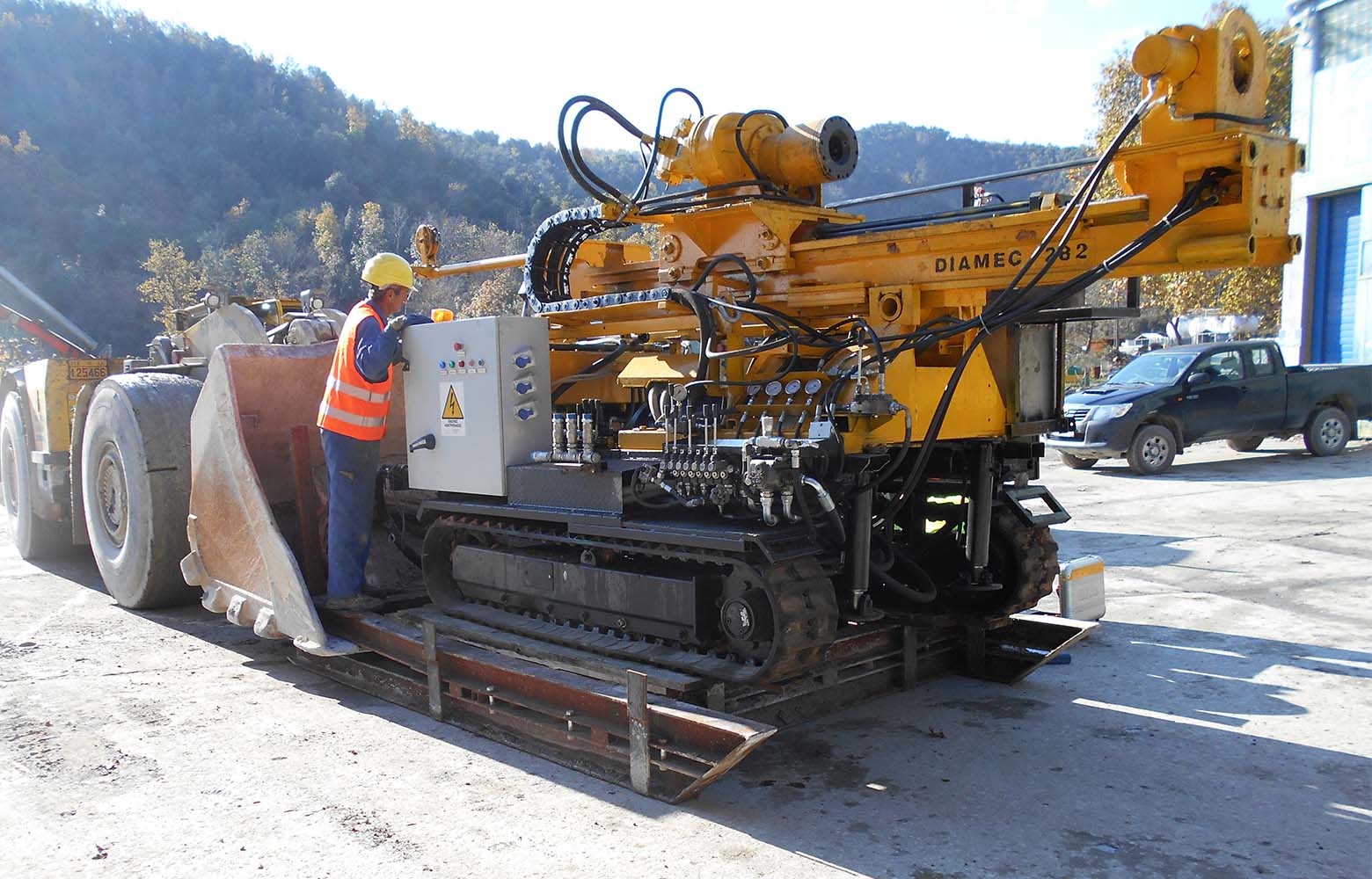

Atlas Copco Diamec 282

Call Us: +30 210 8213311

Atlas Copco Diamec 282 Specs

  • Electric engine 75kW (100hp)
  • RPM : 1450
  • Electrical motor
  • Cooling : water type oil cooler
  • Max pull force : 90kN
  • Feed length : 1750mm
  • Max torque : 1950Nm
  • Rotation speed : 1200r/min
  • Mud pump : Boyles BBP 40Drilling Capacity: 800m (ΝQ)
  • Wireline hoist : 1200m
  • Drilling angle : 90o to -90o

Rig Description

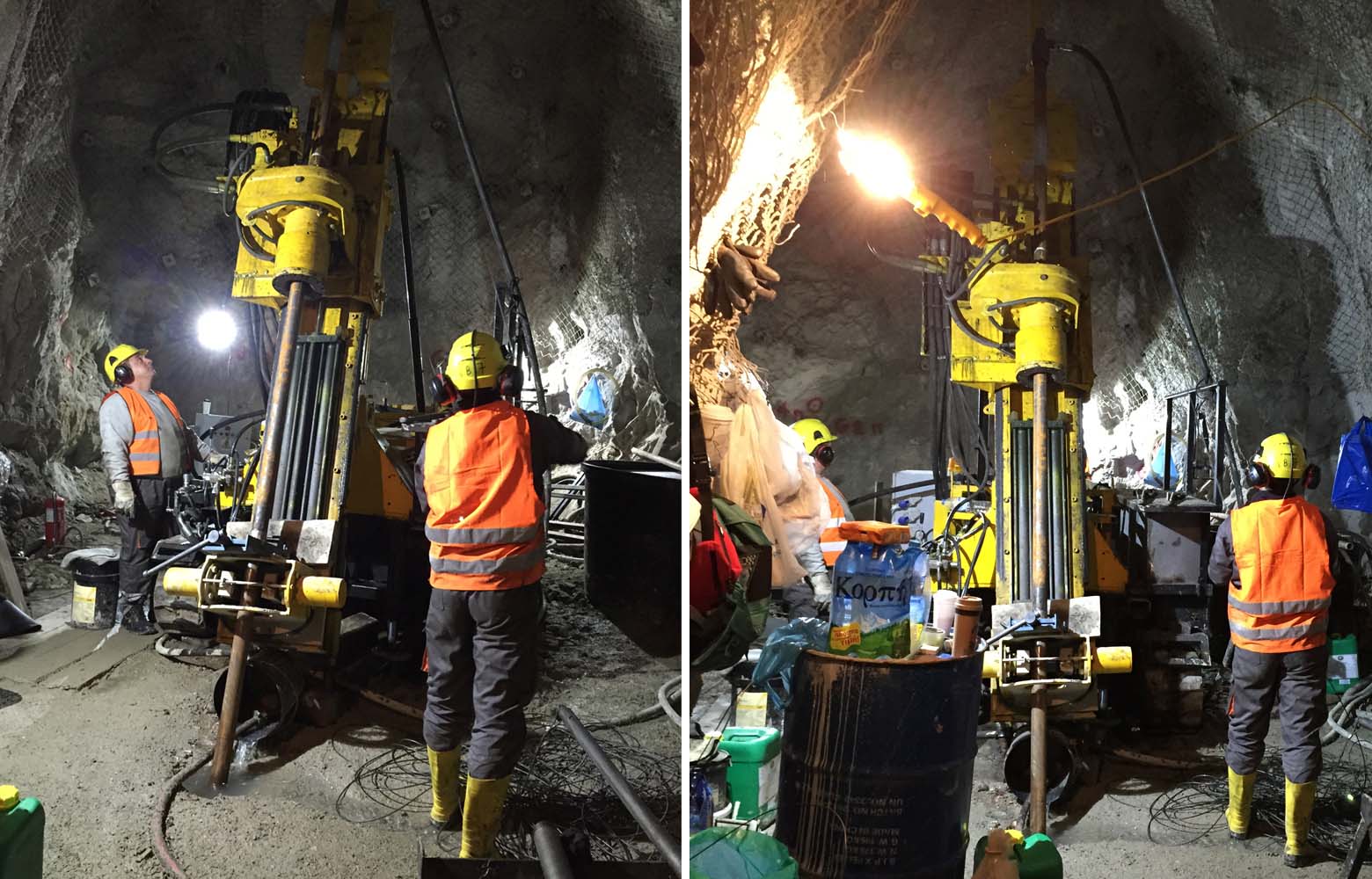

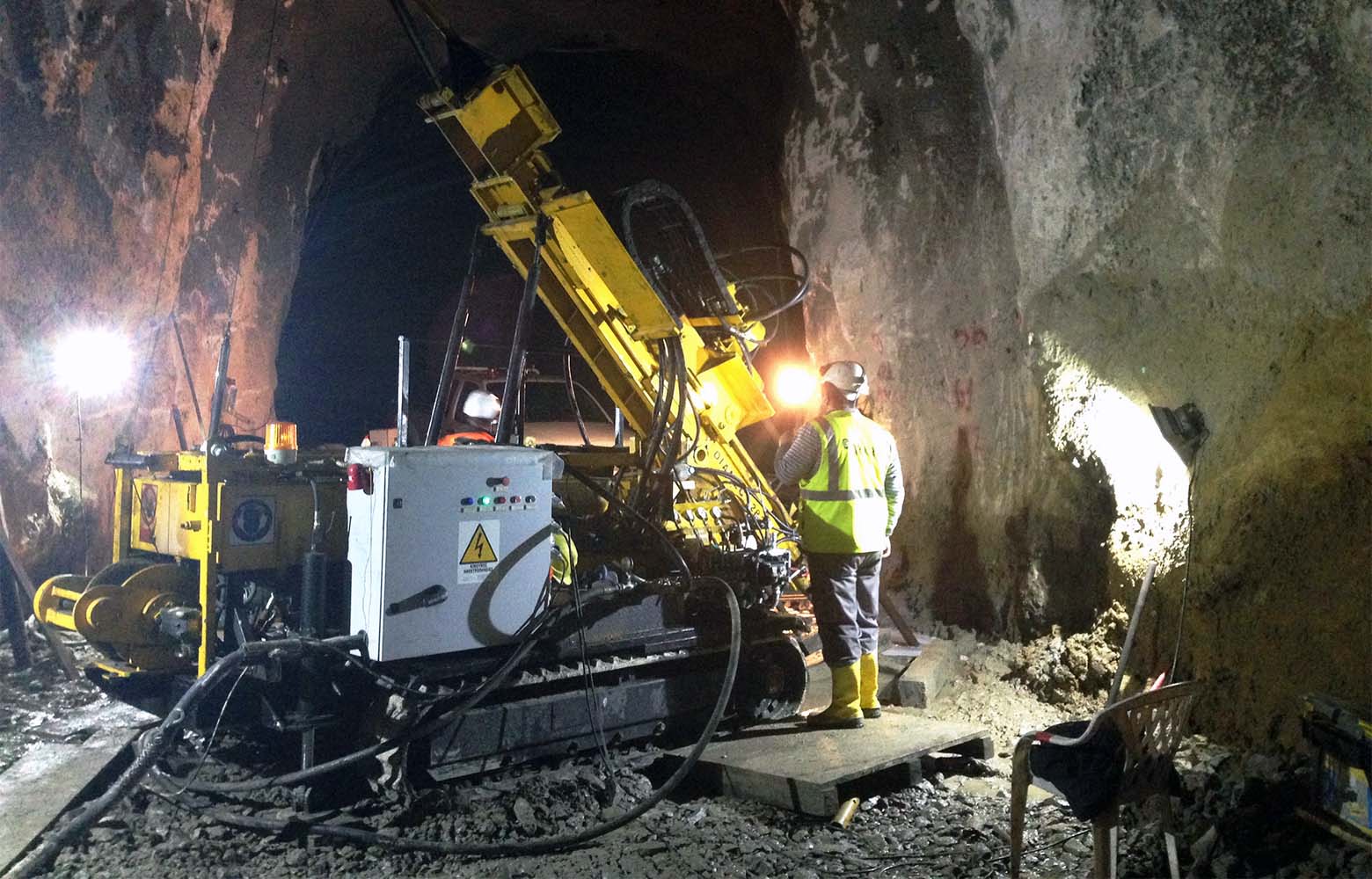

Diamec 282 is an all-hydraulic diamond core drill ideal for prospecting drilling below ground. Easy to handle and operate, the 282 can be set up to drill in different directions, both upward and downward facing.

  • Wireline
  • Crawler
  • PQ, HQ, NQ

Geotest Consulting Engineers SA

Should you need further information for your drilling project, please contact us.
