JKS Boyles 17

Call Us: +30 210 8213311

JKS Boyles 17 Specs

  • Deutz F4L-913 / 66kW (88hp)
  • RPM : 2500
  • Diesel turbocharged
  • Cooling : water
  • Rod holding force : 55kN
  • Mast pull force : 40kN
  • Hydraulic chuck Boyles 234HH
  • Mud pump : Piston pump 110lt/40bar
  • Drilling Capacity : 500m (ΝQ)
  • Wireline hoist : 600m
  • Drilling angle : 55o to -90o

Rig Description

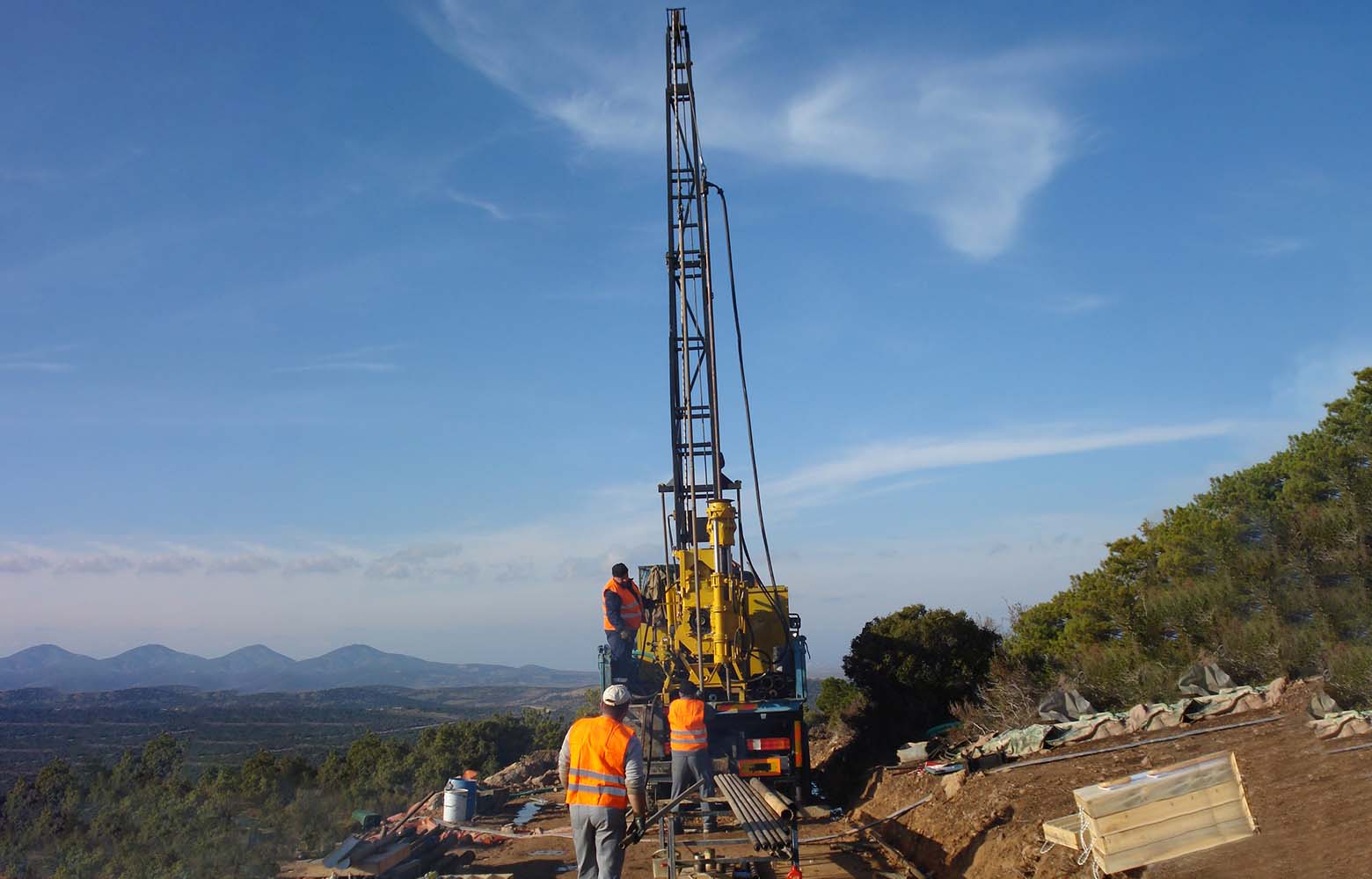

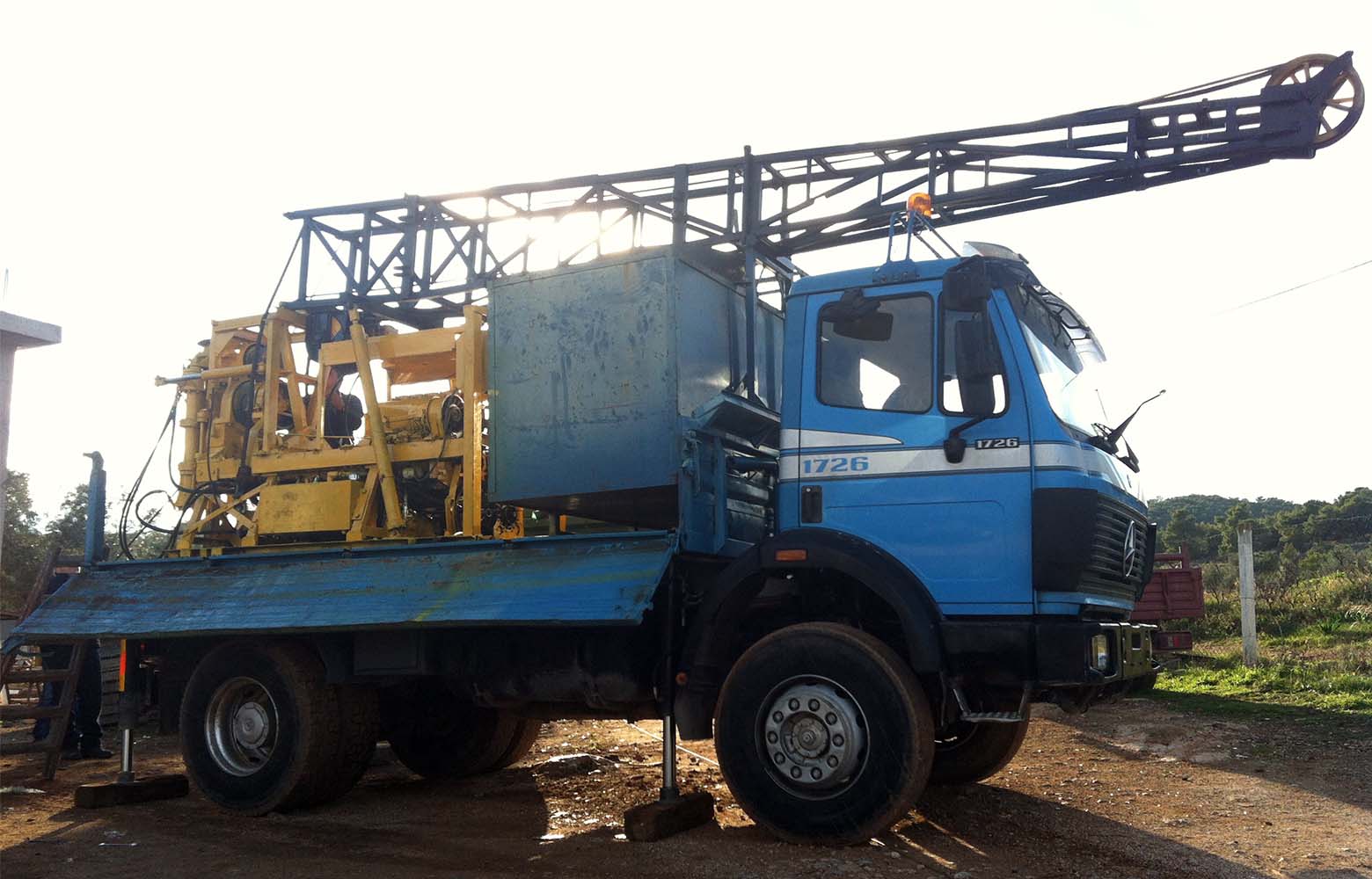

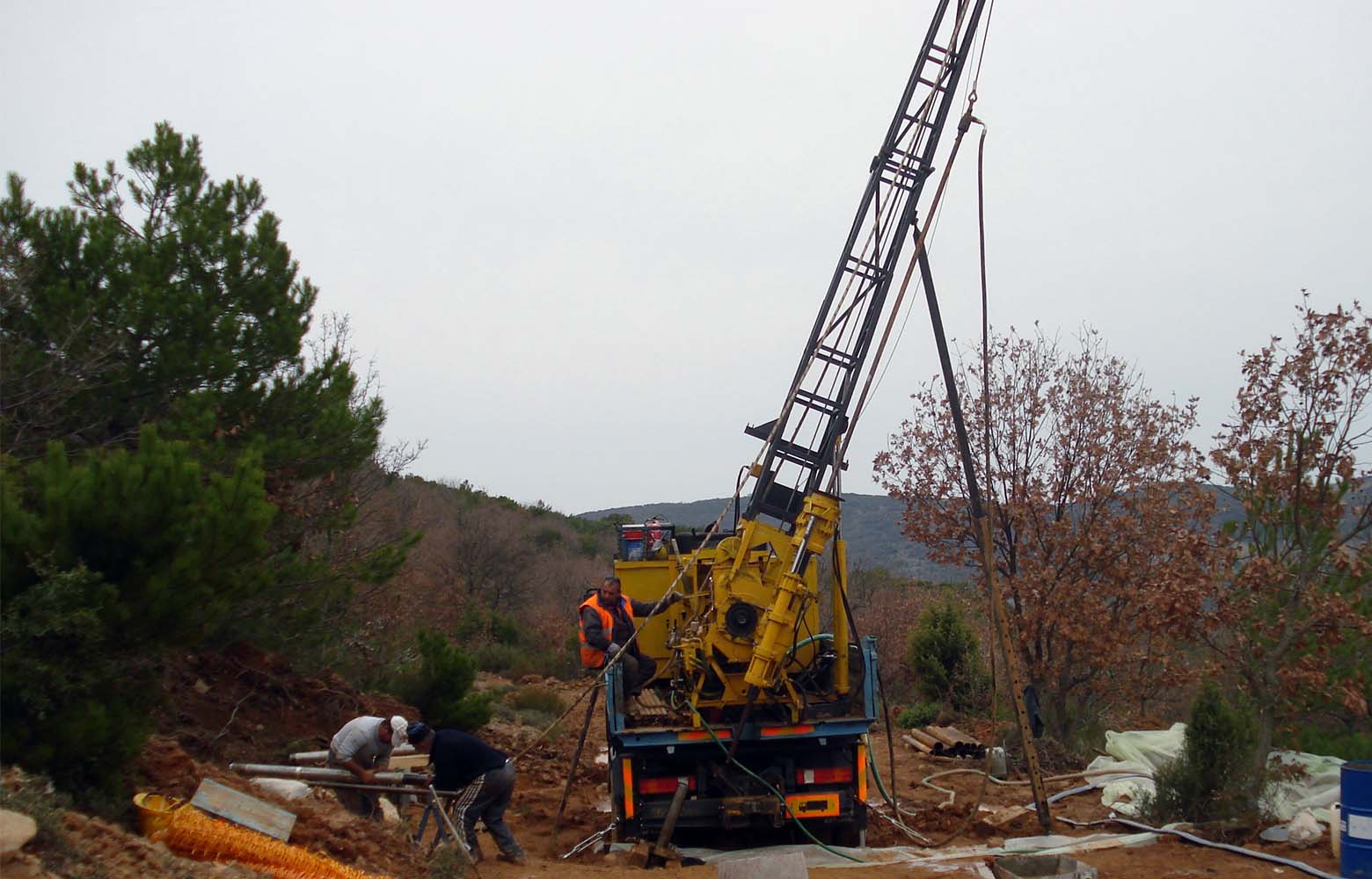

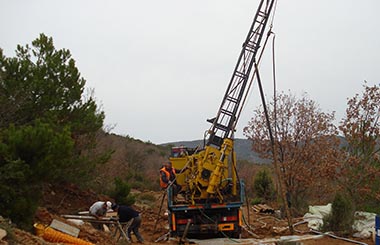

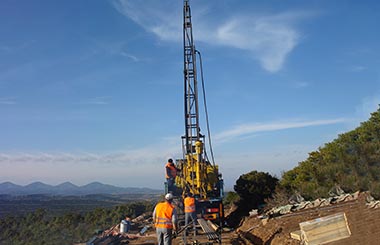

The JKS Boyles 17 surface core drilling rig is low power, yet flexible solution. Mounted optionally on truck or on its own skids can be installed easily in open landscapes or even on mine benches to drill low- to medium-depth boreholes.

  • Wireline
  • Down-the-hole
  • Truck, skid
  • HQ, HQ3, NQ, NQ
